MIL-DTL-24487B (SH)
A
C
B
DETAIL A
B
A
C
10º
D
E
D ETA IL B
Dimmension
Inches
Centimeters
A
0.375 ± 0.016
0.95 ± 0.04
B
0.125 ± 0.016
0.32 ± 0.04
C
0.497 ± 0.005
1.26 ± 0.01
D (Class 1)
0.750 ± 0.015
1.90 ± 0.04
D (Class 2)
0.630 ± 0.015
1.60 ± 0.04
E (Class 1)
0.425 ± 0.015
1.10 ± 0.04
E (Class 2)
0.295 ± 0.015
0.75 ± 0.04

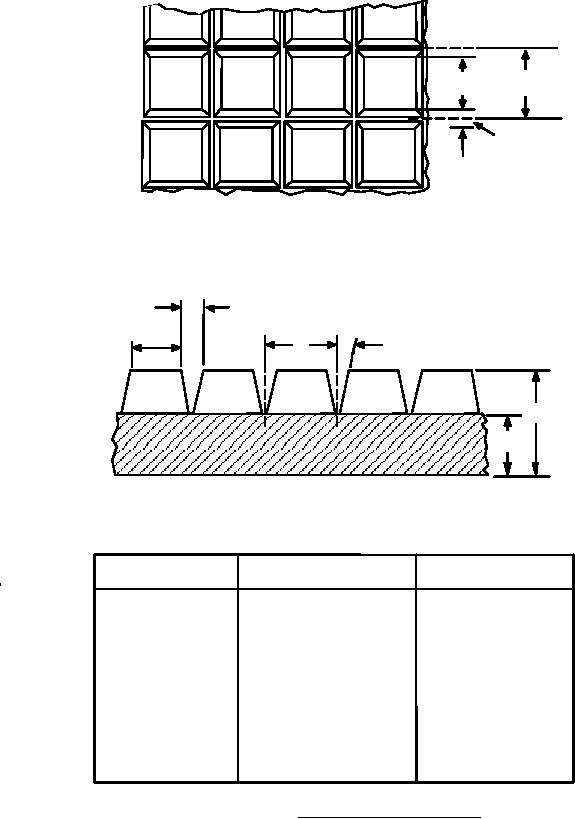

FIGURE 1. Tile cross-groove dimensions.
